Submersible sewage pump installation schematic diagram installation precautions

The submersible sewage pump mentioned here refers to the WQ submersible sewage pump. There are two installation methods of the WQ submersible sewage pump, one is fixed installation and the other is mobile installation. The fixed installation is the submersible sewage pump product used. It is only used when it is fixed to a sump for drainage operations all the year round, or because it is a large-flow submersible sewage pump product, due to its heavy weight, it is convenient for maintenance to adopt a coupled fixed installation. In case of maintenance, it is not necessary to pull out the water pipe or submersible sewage pump. can rise up. The mobile installation is mainly used for temporary drainage. The submersible sewage pump needs to be replaced at any time in the drainage tank or the pump needs to be taken away after each drainage. The mobile installation is basically some small submersible sewage pumps. The product is easy to move because of its small size and light weight.

1. Schematic diagram of mobile submersible sewage installation

The mobile submersible sewage pump is supported by a bracket and can work after connecting the outlet hose. This method is mainly used for emergency rescue or maintenance construction.

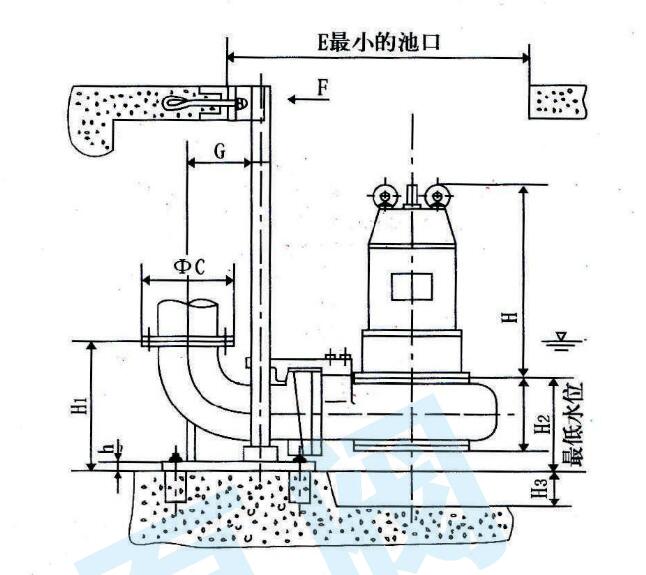

2. Schematic diagram of installation of fixed submersible sewage

The fixed submersible sewage pump is suitable for long-term fixed use occasions, and has the advantages of quick installation, convenient inspection and maintenance. The system uses a special base, which is fixed at the bottom of the sewage pit and connected to the outlet pipe. The supporting block is installed on the top of the pool, and the two are connected with a guide rod. The water pump is connected to a specific bracket and slides down along the guide rod to reach The base is automatically coupled and sealed with it, and it will automatically fall off when it is lifted.
